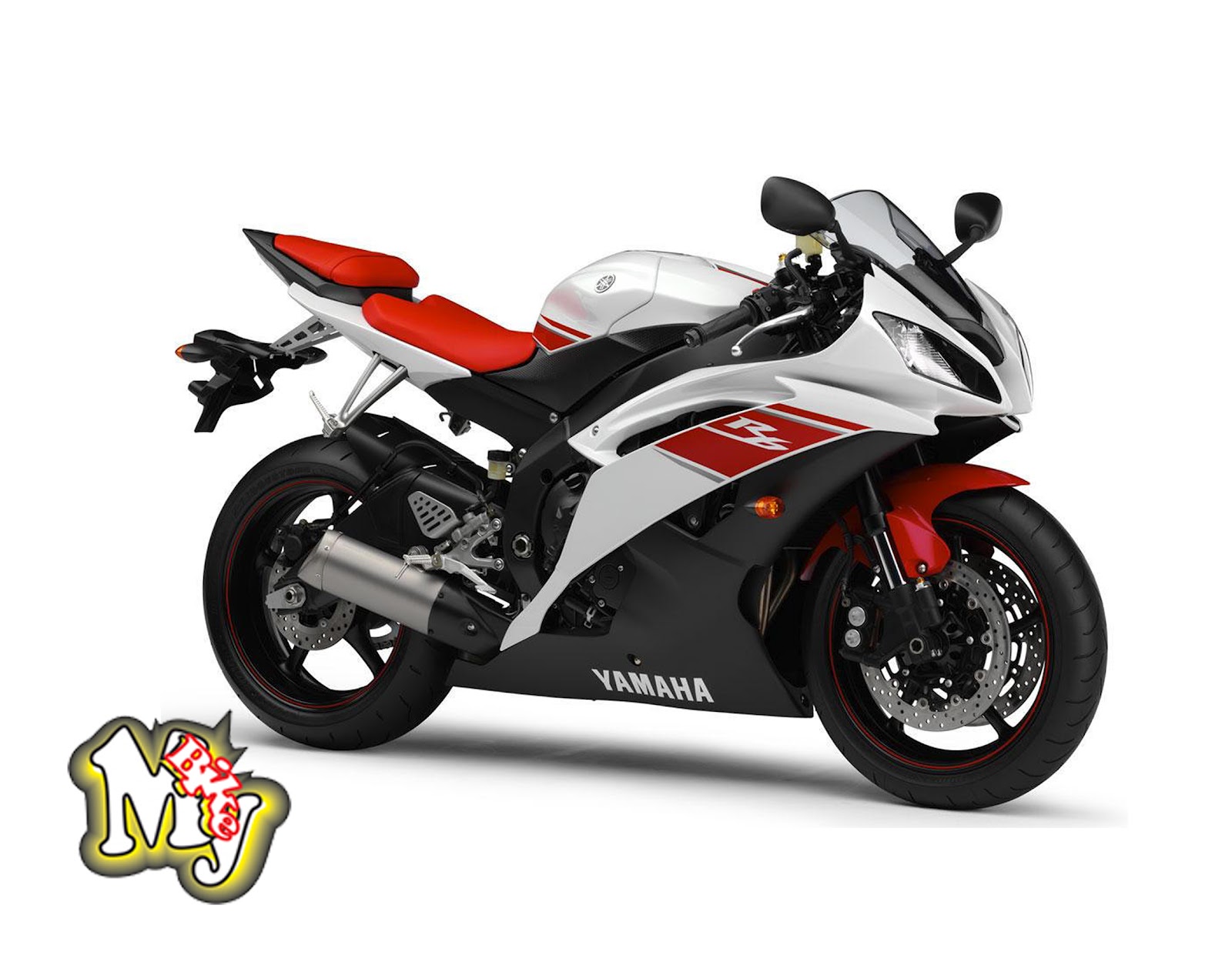

Yamaha YZF-R6

Yamaha YZF-R6WOW. . . Wooowwwcool bike, MotoGP-style design and the latest technology called Yamaha Chip Control Throttle,
 with gasoline consumption reached 17kpl/48mpg. With a 599cc engine, 4 cylinders, 16 valves of titanium and liquid cooling, Bore x stroke 62 x 42.5 his and a double injector plus enough to make this bike a dream.Secondary injector will operate through 12 holes in 6000 until 7000 rpm until the top speed,
and that is no less interesting feature is Yamaha Chip Control Throttle (YCC-T), this feature is collaborating with Positiion Throttle sensor (TPS)
 and electronic throttle control for response and control at high RPM even only need 0.3 seconds to control the system from high to low RPM and vice versa.
An additional feature is EXUP (Exhaust Ultimate Power Valve) that can maximize penikungan and stability in high speed and Air Injection System (AIS) which injects fresh air to optimize combustion and reduce exhaust emissions of HC and CO range. Quasi double adjustable been applied in this motor,
 the difference between the rear pake Monocross, quite comfortable, especially the tank fitted with an average body posture with a fuel capacity of 17, 5 liter and 3.5 liter reserve.

Spesification

Yamaha YZF-R6EngineType : 599cc liquid-cooled inline 4-cylinder; DOHC, 16 titanium valvesBore x Stroke : 67.0 x 42.5mm
Compression Ratio : 13.1:1
Fuel Delivery : Fuel Injection with YCC-T and YCC-IIgnition: TCI (Transistor Controlled Ignition)
    Transmission : 6-speed w / multiplate slipper clutchFinal Drive: O-ring chainChassisSuspension / Front: 41mm inverted fork; 4-way adjustable, 4.7-in travelSuspension / Rear: Single shock; 4-way adjustable, 4.7-in travelBrakes / Front: Dual 310mm floating disc; radial-mount 4-piston calipersBrakes / Rear: 220mm disc; single-piston caliperTires / Front: 120/70-ZR17Tires / Rear: 180/55-ZR17DimensionsLength: 80.3 inWidth: 27.8 inHeight: 43.1 inSeat Height: 33.5 inWheelbase: 54.1 inRake (Caster Angle): 24 °Trail: 3.8 inOil Capacity (with oil filter change): 2.75 qtFuel Capacity: 4.5 galFuel Economy: 40 mpgWet Weight: 417 lbOtherMain Jet: Not ApplicableMain Air Jet: Not ApplicableNeedle Jet: Not ApplicableNeedle Jet: Not ApplicablePilot Air Jet 1: Not ApplicablePilot Outlet: Not ApplicablePilot Jet: Not ApplicablePrimary Reduction Ratio: 85/41 (2073)Secondary Reduction Ratio: 45/16 (2813)Gear Ratio - 1st Gear: 31/12 (2583)Gear Ratio - 2nd Gear: 32/16 (2000)Gear Ratio - 3rd Gear: 30/18 (1667)Gear Ratio - 4th Gear: 26/18 (1444)Gear Ratio - 5th Gear: 27/21 (1286)Gear Ratio - 6th Gear: 23/20 (1150)
