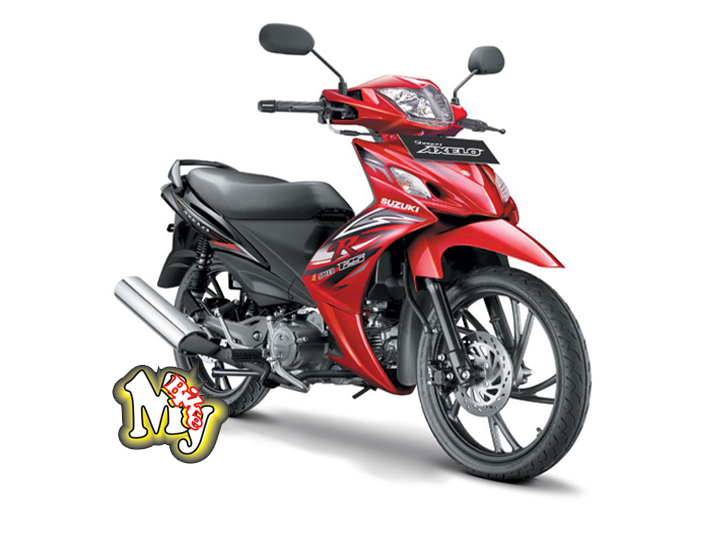

Suzuki Shogun 125cc Axelo

Shogun Axelo 125 cc launched a three-choice model, which is the lowest rear brake drum (drum). Above it there is a version that is equipped with rear disc brakes (disc brakes). And the ultimate "sport type" has been using the rear brake disc and manual clutch (manual Clucths).


Suzuki Shogun 125cc Axelo

While the price is according to standard, "The price of each 13.8 million, 14.7 million and 15 million (on the road in Jakarta).
Ganerasi Shogun 125 is designed sturdy, aerodynamic, sporty and racing character. Diharapkanp youthful consumers will choose it for their daily activities.





Features and technology improvements over its predecessor include CDI Shogun new Mitsubishi-designed artificial because it is equipped to prevent knoking antiknocking at 9800 rpm rotation.Valve angle of 24 degrees (in) and 26 degrees (ex), compression ratio 9,6:1, TPS, PAIR control valve and engine balancer to minimize vibration of the engine, making its performance more excellent.

The compact design of the framework to support the stability and agility maneuvers. And dibuatkannya three points to the engine cradle frame.

Specification

Dimensions & Weights
Length : 1895 mm
Width : 715 mm
Height : 1075 mm
Wheelbase : 1220 mm
Distance of the machine to the ground : 135 mm
Weight (kg) : 105 (Axelo S) / 108 (Axelo R)

machine
Type : 4-step, SOHC, 1-cylinder
Cylinder diameter : 53.5 mm
Step piston : 55.2 mm
Capacity : 124 cc
Power : 9.6 ps @ 8000 rpm (Axelo Axelo & S), 10 ps @ 8500 rpm (Axelo R)
Torque : 10 Nm @ 6000 rpm (Axelo & S), 9.9 Nm @ 6000 rpm (R)
Fuel consumption : 46 km / liter


chassis
Front tire : 38P 70/90-17M/C
Rear tire : 44P 80/90-17M/C
Front brake : Disc
Rear brake : Tromol (Axelo), Disc (S & R)

transmission
Acceleration : 4-speed
Type of transmission : N-1-2-3-4 (Axelo and S), 1-N-2-3-3 (R)

capacity
Gas tank : 4.1 liters
Trunk : 7 liter
